Description:
Name: Racing Drone
Brand: EMAX

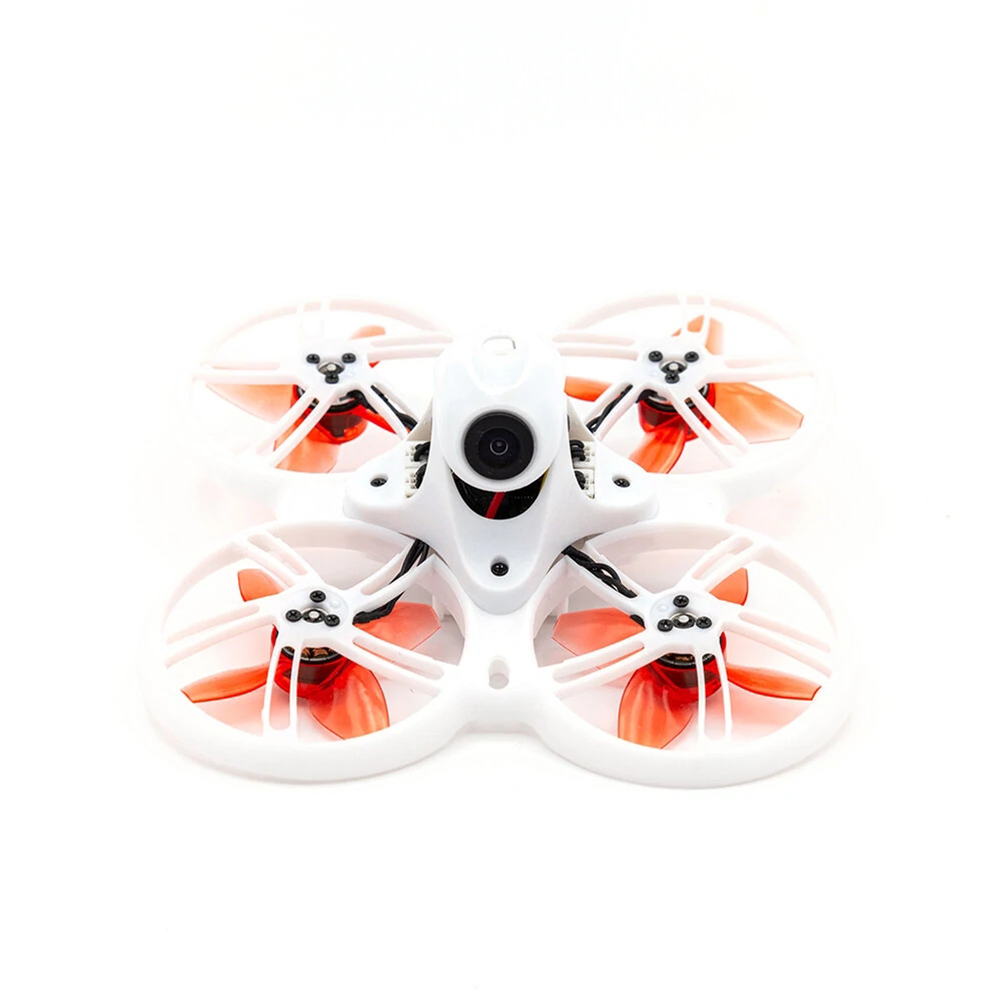

Item Name: Tinyhawk III FPV Racing Drone
Wheelbase: 76mm
Motor: TH0802 II 15000KV
Propeller: Avan TH Turtlemode-3
Main board: F4 (STM32F411 firmware) 4in1/5A ESC EMAX Tiny Receiver (SPI/Frsky_D8)
Camera: Run Cam Nano 4 Camera
VTX: 200-100-25mW 37CH (Adjustable frequency) Support SmartAudio
Battrey: 1SHV 450mAh
Flight Time: About 7 Mins
Flight Distance: About 400 Meters
Maximun Size: L x W x H=105x105x45mm
Weight(Without battery): About 32g
EMAX E8 Transmitter
Number Of Channels: 8CH
Frequency: 2.4GHz (2400MHz-2483.5MHz)
Output: 22dbm
Battrey: 18650 Lithium ion battery
Charging System: Built in USB 1A linear lithium ion battery charging system
Working Voltage: 4.2V-3.3V
External interface: Micro USB, 3.5mm Audio interface (wired coach interface)
Maximun Size: L x W x H=150x140x45mm
Weight(Without battery): About 260g
EMAX Transporter 2
Screen resolution: 480X800
Screen size: 4.3inch
Battrey: 1300mAh Lithium ion battery
Working Voltage: 4.2V-3.7V
Frequency: 5.8GHz (5658MHz-5945MHz)
Charging System: Built in USB 1A linear lithium ion battery charging system
DVR: 32G TF card (max), MJPEG, AVI
Video: VGA/D1/HD Off/3min/5min/10min
Antenna: 2 x 3dB
Maximun Size(Without antenna,Folded): L x W x H=155x100x90mm
Weight(Without battery): ABout 398g
features:
- New Transporter 2 FPV goggles built-in DVR and detachable screen can be connected to the controller as an external monitor.
- New E8 transmitter with 8 channels and high quality, hobby-style gimbals. This controller can remain usable up to larger racing drones.
- Receiver with 8 Channels - SPI / FrSKy D8 Compatible
Packing list:
1x Tinyhawk III FPV Racing Drone
1x Emax 1s HV 450mAh
1x Charger
4x Propeller
1x Accessory package
Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
Manual measuring,please allow 1~3mm error,thank you.
.
